Arduino Theremin

When I got my Arduino protoshield from sparkfun, I wanted to make something cool with it. And since I had seen a few Theremin projects before, and already thought about making some, I finally made one, using the Parallax PING sonar sensor. Here are some informations about how I made it. You can see all the pictures here.



First, the schematics:





Here's the commented code for the Arduino:

int pingPin = 7;
int buzzPin = 10;
int btnPin = 1;
int val;

void setup()
{
  pinMode(buzzPin, OUTPUT);  //set speaker pin to output
  pinMode(btnPin, INPUT);    //set pushbutton pin to input
}

int getPing()
{
  //send a 10us pulse to wake up the sonar
  pinMode(pingPin, OUTPUT);
  digitalWrite(pingPin, HIGH);
  delayMicroseconds(10);
  digitalWrite(pingPin, LOW);

  //get the raw value from the sonar, corresponding to the
  //actual time of travel of the ultrasound waves
  pinMode(pingPin, INPUT);
  return pulseIn(pingPin, HIGH);  //return this value
}

void loop()
{
  if (digitalRead(btnPin) == HIGH)  //only play when the button is pressed
  {
    val = getPing() / 5;  //you can tune the pitch by dividing by a different number

    //generate the pulse
    digitalWrite(buzzPin, HIGH);
    delayMicroseconds(val);
    digitalWrite(buzzPin, LOW);
    delayMicroseconds(val);
  }
}

And that's about it! Now you should start to learn how to play it... Kinda hard at the beginning, but that's where the fun begins!
Here are some videos of me playing (jingle bells and tetris). It's also kinda noisy... maybe a better sonar would be better (if you have a different sonar, and manage to make a better 'thereduino', I want to see it!!!). Enjoy (or at least try to :p).

If I improve my skills, I'll post new videos... But I also want to see YOU playing YOUR Arduino Theremin! Feel free to send me an email or write a comment.

BRAT rebuilt with new servos

This summer, I had bought 6 new Hitec HS-475HB servos from Lynxmotion,  and I just removed the old servos and rebuilt the BRAT yesterday. Of course, it's a lot better than it was with the HS-422 servos...

Here are some photos:

And videos (in the second one, the BASIC Atom is sending data to the SSC-32, I'm just using the code generated by the Sequencer program):

As soon as I have time, I'll try to improve the waking sequence, add some other sequences (turn, kick), add some sensors, and make a bit more autonomous.

and sorry for the low quality of photos and videos...

Watch the latest videos on YouTube.com

Lego NXT + wiimote with MSRS tutorial

It's time to post the first tutorial on this blog: controlling a Lego Mindstorms NXT robot (but the code would also work for any other differential drive robot supported by MSRS, including the BASIC Stamp-based BOE-bot from Parallax, the iRobot Create, etc.) with a Nintendo wiimote (if you're not yet an expert: the WII controller) using Microsoft Robotics Studio (MSRS) 1.5. I wrote an introduction to this in my first post, and the time has come to write a tutorial about it! I'm also going to introduce you to writing services with Microsoft Robotics Studio.

Update: You can download a project for Microsoft Robotics Developer Studio 2008 here (read the readme first). Most of the tutorial is still compatible with the new version, so there shouldn’t be any problems following it.

Creating a service

A service is a fundamental concept in MSRS. A service can represent many different things in MSRS:

1. First, every application you write with MSRS is a service by itself
2. The code which allows communication with a robot is a service. It’s sometimes called ‘BrickService’ and it sends motor data/receives sensor data using the appropriate communication protocol (e.g. the PC communicates with the NXT via Bluetooth and sends/gets data in a specific way)
3. The ‘generic contracts’ are services that allow you to handle specific parts of a robot, like motors, a differential drive system, different sensors, cameras. These services are the same for whatever robot you are using. That allows you to run the exact same program with different robots (for which the contracts you’re using are available) or even in simulation.
4. You can even write a service for a specific behavior, so that you could use that service in another application without having to write the whole thing again. (a good example would be the Robotics Tutorial 3 - Creating Reusable Orchestration Services on msdn)
5. Any other piece of code for MSRS…

A service is always communicating with other services: sending requests (e.g. telling the drive service to go forward at 50% speed for the left and right motors), and receiving notifications from another service to which you have subscribed (for example, a bumper service would send a notification when the bumper was pressed or released, or the wiimote service would send notifications when the state is changed, i.e. when the accelerometer or a button changes state).



So after this brief intro about the structure of an application, let’s start by creating a service!

To do this, you need to open the MSRS command prompt (this is an important tool in MSRS), found by navigating from the start menu. It’s nothing more than a console window waiting for you to write commands. The command you need to create a service is dssnewservice, followed by a set of parameters. The only parameter you really need for now is /service: (or just /s:), where you specify the name of the service you want to create (others include the programming language, the namespace, etc.). So let's create a wiimoteNxt service:

dssnewservice /s:wiimoteNxt

This creates a folder 'wiimoteNxt' in the C:\Microsoft Robotics Studio (1.5)\ directory (or wherever you installed MSRS 1.5). Navigate to it, and open the wiimoteNxt.sln solution file with Visual C# express or any other version of Visual C#/Visual Studio you have. And there's the project of you service!

Adding references

The next thing we need to do is to add references to our project, so that we can use what we need to use: a drive service, and Brain Peek's WiimoteLib service.



Update: For the next part, note that I provided the necessary wiimoteLib files with the MRDS 2008 version of the project, so you won’t need to migrate the project, although downloading wiimoteLib can be useful for additional stuff.

First, let's set up the WiimoteLib service, so that we can use it in our project. If you haven't downloaded it yet, you can get it here (get the version with the source code). After extracting, you can see a few folders. The folder for the MSRS service is WiimoteCS\WiimoteMSRS, but the problem is that it was written for MSRS 1.0, not 1.5 (Update: the new versions of wiimoteLib are written for MSRS 1.5, so you shouldn’t need to migrate the project, but you still do need to build it). Fortunately, MSRS 1.5 has a nice tool to convert existing services prior to 1.5 to 1.5: the dssProjectMigration tool. To convert the service, just type the following command in the Console, with the appropriate path:

dssProjectMigration "D:\wiimote\291133_WiimoteLib\WiimoteCS\WiimoteMSRS"

Once you've done this, you can compile the service, which is now 1.5 compatible. To do this, open the Wiimote.sln file, then Build->Build Wiimote, then close the solution.

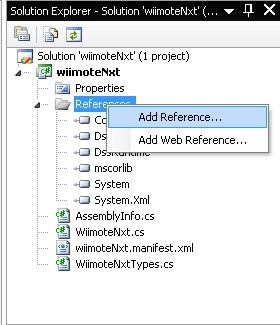

Now that we have compiled the WiimoteLib service, we are going to be able to use it in our wiimoteNxt service. Now we have to add the references: right click on 'References' in the Solution Explorer, and click 'Add Reference...', as shown:

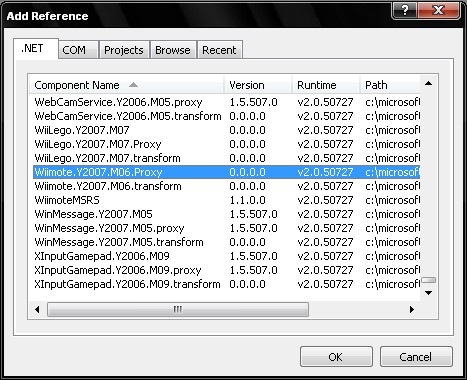

In the window that pops up, select the "Wiimote.Y2007.M06.Proxy" reference, which corresponds to the service you've just built, in the .NET tab (every time you'll want to add a reference, you'll have to choose the component ending with .Proxy; the others have other purposes):





Also add the RoboticsCommon.Proxy reference. That's where the drive service is.

Next, we'll have to add using directives in our main .cs file, so that we won't need to type Microsoft.Robotics.Services.Drive.Proxy.something, but only drive.something. Add the following code at the top of WiimoteNxt.cs, after the other using directives:

using wiimote = WiimoteLib.Proxy;
using drive = Microsoft.Robotics.Services.Drive.Proxy;

Now we're all set! We can finally start to write something interesting!

Subscribing to the wiimote

In order to get notifications from the wiimote (i.e. acceleration data for us), we have to subscribe to its service. This allows the wiimote service to know that it will have to send us notifications, each time a change occurred.



When you subscribe to a service, that service will send messages with the notifications, therefore, our service will need something to receive those messages, in a sort of stack that holds those messages. In MSRS, this is called a Port. Every service has its own port, usually defined as "Operations", which gives us access to the service.



To specify that the two services are going to communicate, we'll need to add a Partner attribute before declaring the ports (attributes are an advanced feature of C#.NET, which I won't cover, but be aware that it's just a way to tell the runtime environment something about what is running. For instance, MSRS uses that information during runtime to show which services are running, what they subscribe to, etc. on a browser). The wiimote and drive services are called Partner services.

For the wiimote, we will need to declare two ports: one is the main wiimote port, declared with a Partner attribute, and the other is a notification port, which is used to receive notifications and handle them. The parameters of the Partner attribute are:

1. The name identifying the partner (this name will appear on the web browser, for instance)
2. The ID of the service (a complicated string belonging to the service), accessed with: serviceProxy.Contract.Identifier
3. The creation policy of the partner. This tells if a new instance of the service should be created or not (for instance, the wiimote data is the same everywhere, so you could use the same instance in different services; whereas a behavior service is different for different robots, so you should create a new instance in different services). Here we will be using PartnerCreationPolicy.UseExistingOrCreate, which means that if there already is an instance, we'll use that one, otherwise, we'll create a new one.

Now copy this code after the _mainPort declaration, in the same file.

//the wiimote port (with the appropriate Partner attribute)
[Partner("wiimote", Contract = wiimote.Contract.Identifier, CreationPolicy = PartnerCreationPolicy.UseExistingOrCreate)]
private wiimote.WiimoteOperations _wiiPort = new wiimote.WiimoteOperations();

//the wiimote notification port
private wiimote.WiimoteOperations _wiiNotify = new wiimote.WiimoteOperations();

Now that we have got the ports, we need to subscribe to the wiimote service. In order to do that, the main wiimote port has to subscribe to the notification port, so that it will get the notifications from it. Add the following line of code in the Start() function, after base.Start():

_wiiPort.Subscribe(_wiiNotify);

Then, we have to start receiving notifications from the wiimote. That is, you need to activate a receiver, which will receive wiimote.WiimoteChanged messages from the _wiiNotify port, and go on receiving forever. This sentence translates into the following code, which follows the previous line (true stands for 'forever', whereas false would be 'just once'):

Activate(

    Arbiter.Receive<wiimote.WiimoteChanged>(true, _wiiNotify, wiimoteChangedHandler)

);

Notice that the last argument is 'wiimoteChangedHandler'. That's a handler we haven't declared yet, which will be executed each time a new wiimote.WiimoteChanged message comes in, with that message as an argument to the handler. So let's declare that! (you can add it after the GetHandler):

//wiimote notifications handler

void wiimoteChangedHandler(wiimote.WiimoteChanged wiimoteChanged)

{

}

We are ready to send requests to the motors!

Sending requests to the motors

Now that we have a handler for the wiimote state changes, we only need to send the appropriate requests to the NXT motors.

First, let's add the using directive:

using drive = Microsoft.Robotics.Services.Drive.Proxy;

Then the Partner drive port:

//The drive port with its Partner attribute

[Partner("drive", Contract = drive.Contract.Identifier, CreationPolicy = PartnerCreationPolicy.UseExistingOrCreate)]

private drive.DriveOperations _drivePort = new drive.DriveOperations();

Now, in the wiimote handler, we'll have to send the drive requests to the motors. You can set up the request with the drive.SetDrivePowerRequest class, and then send it with the _drivePort.SetDrivePower() function. Here is the updated handler, with comments:

void wiimoteChangedHandler(wiimote.WiimoteChanged wiimoteChanged)

{

    //swap some variables to use the wiimote horizontally (float between -1.0f and 1.0f)

    float x = -wiimoteChanged.Body.AccelState.Values.Y;

    float y = wiimoteChanged.Body.AccelState.Values.X;

    //create a drive request

    //(if you prefer, there is a constructor that allows you to set the speeds directly):

    //drive.SetDrivePowerRequest request = new drive.SetDrivePowerRequest(leftSpeed, rightSpeed);

    drive.SetDrivePowerRequest request = new drive.SetDrivePowerRequest();

    request.LeftWheelPower = y + x;

    request.RightWheelPower = y - x;

    //OR (if you feel uncomfortable with the way it's going backwards)

    //if (y > 0)

    //{

    //    request.LeftWheelPower = y + x;

    //    request.RightWheelPower = y - x;

    //}

    //else

    //{

    //    request.LeftWheelPower = y - x;

    //    request.RightWheelPower = y + x;

    //}

    _drivePort.SetDrivePower(request); //send the request to the drive port

}

And that's it!

Running the service

Before running the program, we have to specify a manifest file, that tells MSRS which robot to use (in this case, we only need a robot that supports the drive service, which is most of the mobile robot), or even run in simulation.

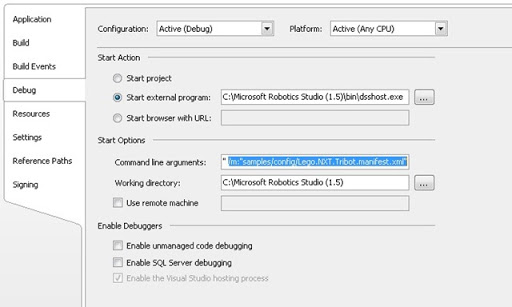

If you want to run the service from within Visual Studio (and debug the program), you have to change the command line arguments in the Properties (either from the Solution Explorer, or Project->Properties), Debug tab.



Here are a few manifests to add at the end of the 'Command line arguments' textbox:

1. Lego NXT robot (Tribot or any other custom differential drive robot): "samples\config\LEGO.NXT.TriBot.manifest.xml"
2. Tribot in simulation: "samples\config\LEGO.NXT.TriBot.simulation.manifest.xml"
3. BOE-Bot: "samples\config\Parallax.BoeBot.Drive.manifest.xml"
4. iRobot: "samples\config\iRobot.manifest.xml"
5. iRobot Create in simulation: "samples\config\IRobot.Create.Simulation.xml"

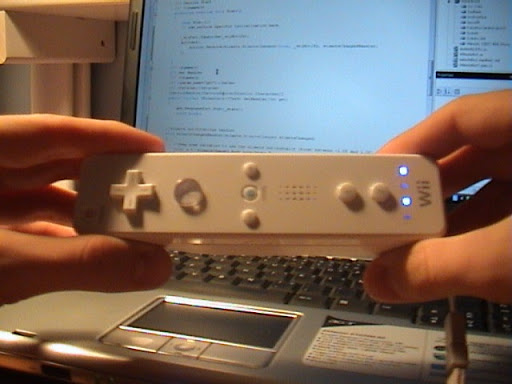

Then, after connecting the robot and the wiimote to the PC (I use BlueSoleil on the PC, which works great compared to the original drivers I had. The wiimote didn't work before, now it does with BlueSoleil, so you might want to try it if you have any problems), debug the program (press green arrow button, or F5), and...there you go!!! (hold the wiimote as shown)



Another way to run the service without opening Visual Studio is through the MSRS Command Prompt, with the following command:

dsshost -port:50000 -tcpport:50001 -manifest:"wiimoteNxt/wiimoteNxt.manifest.xml" -m:"samples/config/Lego.NXT.Tribot.manifest.xml"

(note that m is short for manifest, and -m: and /m: are the same)

Change the paths of the manifests, if needed (the first one is the service's manifest, and the second is the robot's one), get ready, and have fun!



Finally, here's a video:



If you need any help with connecting and initializing your robot, or anything else about MSRS, check the MSRS documentation (online, or in chm format in the installation folder).



You can download the project here (extract it in the MSRS 1.5 directory)

You can get the MRDS 2008 version here (read the readme.txt first)

Wiimote IR by light bulb reflection

I was at my father's, in my room where light is provided by a simple light bulb attached on the ceiling, and I was looking at the code of a WiimoteLib sample (a C#.NET windows form application). While I was running the sample, I figured out that when I pointed the wiimote somewhere on the screen of my laptop (a glossy and reflective screen), the "IR 1" checkbox was pressed, but then it was toggling randomly when getting away from that specific point on the screen.



Meanwhile, I was trying to figure out what the black box in the form was used for. According to the properties window in Visual studio, it was a picture box called pbIR, which meant it had to do with IR; then I looked up the OnWiimoteChanged event handler in the form code, and I figured out that the graphic being displayed on that picture box was used to draw the IR position, with the following code:

g.Clear(Color.Black);

if(ws.IRState.Found1)

 g.DrawEllipse(new Pen(Color.Red), ws.IRState.RawX1 / 4, ws.IRState.RawY1 / 4, ws.IRState.Size1+1, ws.IRState.Size1+1);

if(ws.IRState.Found2)

 g.DrawEllipse(new Pen(Color.Blue), ws.IRState.RawX2 / 4, ws.IRState.RawY2 / 4, ws.IRState.Size2+1, ws.IRState.Size2+1);

BeginInvoke((MethodInvoker)delegate(){pbIR.Image = b;});

So basically, this code would draw in red (for IR 1) and in blue (for IR 2) a circle at the appropriate position. Then I ran the app again, and when the IR 1 checkbox was checked, I was actually seeing a red circle moving around, in the same way I was moving the wiimote!!! Without an IR bar!

The screenshot was taken at home; where my screen reflects more than 2 light bulbs (that's why you can see both IR1 and IR2 on, i.e. red and blue)

Just to have fun with it a little bit, I launched WiinRemote and used the wiimote to control my cursor through IR, and it worked pretty well! But I was starting to wonder how all this could happen without any sort of IR led anywhere...

First I noticed that when I was pulling my screen too much towards me, the thing wasn't working any more. Then I tried to put my hand in front of the wiimote in different places, so that I could find out where this IR light was coming from: it was in the middle of the screen, and not elsewhere... Then I looked from the wiimote's standpoint, and I saw ... the light bulb, which was reflected by the glossy screen! To make sure it was it, I tried by pointing the wiimote towards that light bulb directly, and, sure enough, it did work.

So there you have it, a new way to use the wiimote IR capability, without an IR bar!

p.s.  wish I had a camera... or even just a working cell phone camera... (my nokia 6600 can save the pictures I take, but then I can't copy them on my computer... it's either the phone (which behaves in a strange way always), or the memory card, I dunno, but I want an iPhone!!!)

In holiday with Arduino

I have a 10-day holiday, and, as usual, I am in Rome during my holidays (to see my family, to take my piano lessons, etc.). Of course, I couldn't much stuff, so I just brought my Arduino and the components that came with the "Arduino workshop kit" I bought this summer on an Italian site (yep, the Arduino is make in Italy!!), i.e. LEDs, resistors, caps, pushbuttons, hook-up wires, etc. but I also brought a speaker, some sensors and servos, to have some fun with the Arrrrduino.

I actually like the Arduino platform very much, especially the C language, which isn't available with BASIC Stamps or BASIC Atoms that I use for my boe bot and lynxmotion BRAT robot. It's pretty powerful compared to the normal BS2 (although I am missing the multi-processing power of my favorite, the Parallax Propeller), since it uses an AVR ATMega168 (on the most recent boards, including the last one, the "Arduino Diecimila", which is the one I have), but there are a few inconveniences I think, like waiting at least 10 seconds each time you upload a program, and especially the lack of some coding functions that the BASIC Stamp provides, which are very useful and practical, like PULSOUT/IN, SHIFTOUT/IN, even though I think they will be coming soon, if they haven't already. Powering it through USB is very handy, since you don't have to carry around batteries, but of course, you can use any power supply with it. I miss the little breadboard that's on the Board of Education, but I will probably be getting a "protoShield" from Sparkfun as soon as I can: it's a board of the size of the Arduino itself, that you just plug in the Arduino female headers, so that you can use a tiny breadboard directly; but a good thing of it are the 6 analog input pins, and the 6 PWM output pins, which make it very easy to get input directly from an analog sensor, or anything like that.

So one of the first programs I made when I got it was getting an input from a potentiometer, that would change the output frequency of a speaker. That was pretty easy to do, even though the way I did it isn't very high level. Here is the code I used:

int buzzerPin = 10;

int inputPin = 0;

int val;

void setup()

{

    pinMode(buzzerPin, OUTPUT);

}

void loop()

{

    val = analogRead(inputPin);

    digitalWrite(buzzerPin, HIGH);

    delayMicroseconds(val);

    digitalWrite(buzzerPin, LOW);

    delayMicroseconds(val);

}

A few weeks ago, I saw a MAKE magazine weekend projects podcast where I discovered the "Theremin" instrument, which I find very interesting and cool. So I thought I could do something similar, but in a different way: with distance detection. In fact I brought a Sharp GP2D12 sensor and replaced the potentiometer with it, and with the exact same code, it kinda sorta worked: if the hand is perfectly in the perpendicular plane of the sensor, then it controls the pitch, but as soon as the hand doesn't reflect perfectly the IR beam, it gets messier. And because of the non-linear behavior of this analog sensor, and of its somewhat noisy data , it's hard to play something coherent...

I'll try to post some videos soon.

Later, I thought I could try to make it change pitch by tilting an accelerometer (either the Memsic 2125 from Parallax, which I brought here with me, of maybe even with a wiimote and through serial communication with the computer!)

Wiimote controlled Lego Mindstorms NXT using MSRS

This summer, when I was at Carnegie Mellon University (CMU), for a pre-college program, I took a robotics class, in which we used these awesome $5000 robots made by NASA, called MAX, and we used Microsoft Robotics Studio (MSRS) to control them. Since they were PC-Based Robots, they had a lot of power by themselves, and MSRS enabled us to use many of the Windows APIs, like the Speech SDK, the MSN Messenger SDK and other cool stuff (we had teams of 4 people, and in my team, there was a friend whose name is Ryan, who loved making additional projects, as I did, so he spent some time doing a cool speech controlled robot, or even IM-controlled! That was pretty fun).

MSRS uses so-called 'services', which or basically libraries of reusable code, that can either define a robot's behavior (an MSRS application is a service by itself) or it can do some stuff and send back notifications and results to the top-level service (the app we are writing). There was a guy next to my room who brought a WII with him, but never used it, so I thought we could ask for a wiimote (the controller), which I knew could be used with a computer, via bluetooth, and we told him we would do something cool with it: control our robot by sensing acceleration! He liked the idea, and accepted giving it to us just to have fun.

I was the 'leader' of this project, so I started looking for some libraries on the web for the wiimote, and found the best thing ever for our purpose: a guy named Brian Peek, who wrote many articles on Coding4fun (a blog of Microsoft's), wrote a .NET wiimote library, and, the best part of it, he also make an MSRS service for it!!! That was obviously awesome, because we didn't have to write the service ourselves (we were not yet MSRS experts...). So, after the pain of getting the wiimote connected to the laptop via bluetooth, which didn't work with my drivers (I finally got to use BlueSoleil (google it), which worked well. I love it now!), I started (with Ryan next to me) to write the code to remote control MAX, following the subscriptions MSRS tutorial on MSRS website. The whole thing came pretty fast, and after testing in the simulation environment, we tried it on the real robot: it was awesome!!

Now, I don't have the MAX anymore, so I thought I would try to do the same with the Lego NXT kit. I actually got everything working fine, except the fact that the commands execute quite slowly sometimes, I'm not sure whether it's my slow laptop or the bluetooth connection, or the distance... Anyway, I'll have to change my laptop soon, because it's becoming more and more obsolete...

I'll post more info, pictures and videos when I have a better robot (the little robot I made is pretty horrible and isn't very stable (I'm quite bad at building with Lego, but I just ordered a book on amazon), so I'll probably do it with the Tribot or something else I come up with. I'll also either wait for my sister to get the camera (she left this year to London, so I don't have a camera anymore, except a DV camcorder, which has pretty bad quality...) or till I have a new camera...

I'll keep you updated!

Welcome

Hi, I'm Alberto Bietti, and this is going to be my blog for tech stuff, DIY etc. like Robotics, Electronics, but also my computer stuff (programming, 3D, graphics etc.)

I am going to try to keep my work here, at least in text, and, if I get a camera sooner or later, I hope I'll be able to put some pics and videos as much as possible.

I hope you will enjoy the content of this blog, and happy reading!
